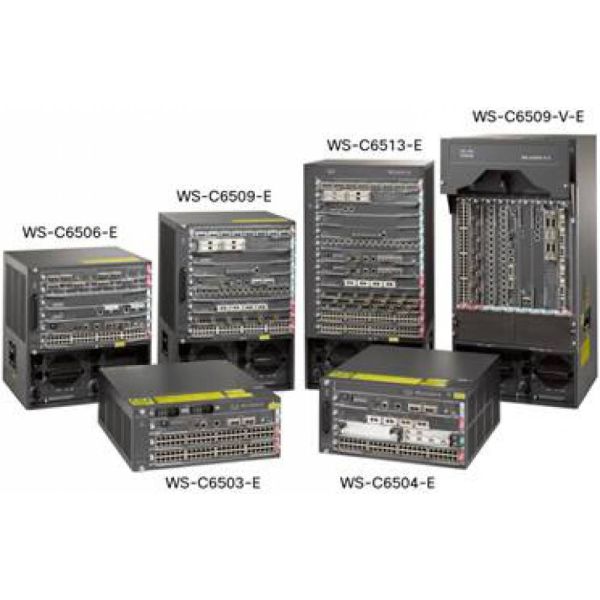

Cisco WS-C6506-E Chassis - Refurbished

Product Overview

Cisco introduces the Cisco® Catalyst® 6500 Enhanced Series Chassis (6500-E Series) delivering up to 2 terabits per second of system bandwidth capacity and 80 Gbps of per-slot bandwidth. In a system configured for VSS, this translates to a system capacity of 4 Tbps. The Cisco® Catalyst® 6500 Enhanced Series Chassis will be capable of delivering up to 180 Gbps of per-slot bandwidth with a system capacity of up to 4 terabits per second. A system configured for VSS will be capable of delivering up to 8 Tbps of system bandwidth.

The Cisco Catalyst 6500-E Series Switch offers the broadest range of interface modules with industry-leading performance and advanced feature integration. The Cisco Catalyst 6500-E Series Switch also offers high port densities and comes in 3-, 4-, 6-, 9, 9-Vertical, and 13-slot versions that make it ideal for a range of deployment scenarios.

The Cisco Catalyst 6500-E Series Chassis provides superior investment protection by supporting multiple generations of products in the same chassis, lowering the total cost of ownership. The Cisco Catalyst 6500-E Series Chassis supports all the Cisco Catalyst 6500 Supervisor Engines up to and including the Cisco Catalyst 6500 Series Supervisor Engine 2T, and associated LAN, WAN, and services modules.

Applications

The versatile Cisco Catalyst 6500-E Series Chassis is ideal for addressing high-performance, high-port-density Fast Ethernet, Gigabit Ethernet, and 10 and 40 Gigabit Ethernet applications in all parts of the network. This series is ideally suited for enterprise core and aggregation environments.

The Cisco Catalyst 6500-E Series chassis offers industry-leading 10/100/1000 Gigabit Ethernet, 10 Gigabit Ethernet and 40 Gigabit Ethernet port densities while providing high levels of network resilience.

Features

• High Interface Capacity
• Increase Resiliency
• Redundant Control Channel
• Redundant Supervisor Engine Option
• Redundant Power Supply Option
• Fan Tray
• Standby Fabric Hot Sync
• 6 Slot Cisco Catalyst

Specifications

• AC and DC Power Supply - AC - 2500W, 3000W, 4000W, 6000W, 8700W, DC - 2500W, 4000W, 6000W
• Dimensions - 19.2 x 17.5 x 18 Inches, 48.8 x 44.5 x 46.0 Centimetres
• Weight - (Chassis Only) - 50 lbs
