The Cisco TelePresence® SX20 Quick Set (SX20 Quick Set) can transform any flat panel display into a sleek and powerful telepresence system. The SX20 Quick Set is designed to deliver high definition video and multiparty conferencing with the flexibility to accommodate various room size and configurations - all at a value price. The SX20 Quick Set supports embedded capability for multipoint support with Cisco® TelePresence MultiSite technology, enabling users to add three additional participants to a telepresence call.
The SX20 Quick Set combines a powerful codec, Premium resolution of 1080P, three camera choices, and a dual display in an easy-to-deploy and easy-to-use solution. Whether you're a small business just getting started with telepresence or a large enterprise looking to expand your existing deployment, the SX20 Quick Set delivers the performance you would expect from more expensive systems - in a compact and feature-rich package. Cisco TelePresence SX20 Quick Set is designed to truly extend the power of in-person to everyone, everywhere.
Design Features
Transforms a flat panel display into a 1080p high-definition meeting space
Intuitive connections make setup as easy as connecting a DVD player
Provides up to 1080p60 resolution - compatible with standards-based video without loss of features
Sleek, compact design
Application Features
Multimedia and presentations can be shared at the touch of a button
Supports Cisco Intelligent Proximity for content sharing to mobile devices and wireless sharing from Macs and PCs[2]
Supports Switched Conferencing (SVC) for enhanced layouts[2]
Easily control room peripherals such as lights, room dividers, curtains, directly from the Cisco TelePresence Touch 10 (optional) through customizable API (requires external third-party control system processor)
Basic API[3] available over IP (Telnet or Secure Shell Protocol [SSH]) or over RS-232 with USB adapter
Dual-display
High-definition content sharing up to 1080p30 resolution
One button to push (OBTP) to start a meeting
Performance Features
H.323/SIP calls up to 6 Mbps
Built-in individually transcoded multipoint conferencing (optional) offers ability to add three additional participants
Premium resolution (1080p60)
Cisco Unified Communications Manager native support (requires Cisco Unified Communications Manager Version 8.6 or higher)
Takes advantage of the Cisco TelePresence Total Solution approach, including Cisco TelePresence ad-hoc conferencing features, recording and streaming, and firewall traversal services
Easy provisioning and self-configuration with Cisco Unified Communications Manager (CUCM), Cisco TelePresence Video Communications Server (VCS), or Cisco WebEx TelePresence
Software Compatibility
Cisco TelePresence Software Version TC 5.1 or later
Cisco Collaboration Endpoint Software Version 8.0 or later (requires Touch 10 or TRC6 remote control)

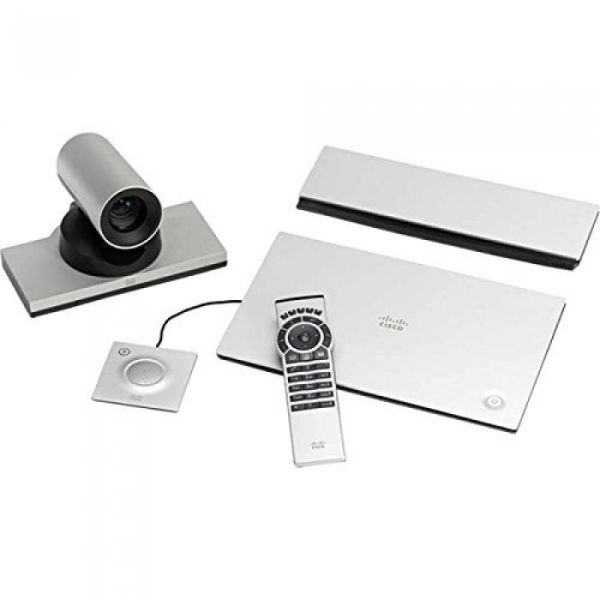

In the Box
SX20 Codec
Cisco TelePresence Precision Camera (choice of Precision 40 or 12X) Cisco TelePresence Table Microphone 20
TRC6 remote control
Cables and power supply
Bandwidth
H.323 and SIP up to 6 Mbps
Video Standards
H.263, H.263+, H.264
Video Features
Local auto-layout
Native 16:9 widescreen
Advanced screen layouts
SX20 Codec Dimensions
Width: 11.8 inches (30.0 cm)
Height: 1.4 inches (3.4 cm)
Depth: 7.1 inches (18.0 cm)
Weight: 3.1 pounds (1.4 kg)
Network Interfaces
One LAN and Ethernet (RJ45) 10/100/1000 Mbit
Security Features
Management using HTTPS and SSH
IP administration password
Menu administration password
Disable IP services
Network settings protection
Audio Features
High quality 20 KHz stereo
Two acoustic echo cancellers
Automatic Gain Control (AGC)
Integration with third-party audio systems
Automatic noise reduction
Active lip synchronization
Audio Inputs (Four Inputs)
Two Microphones, 4-pin minijack
One minijack for line-in stereo
One Audio in from Camera (HDMI)
Audio Outputs (Two Outputs)
One minijack for line out stereo
One HDMI, (digital main audio)
[1] Requires Collaboration Endpoint Software Version 8.2 or later (CE8)
[2] Requires Collaboration Endpoint Software Version 8.0 or later (CE8)
[3] Requires Collaboration Endpoint Software Version 8.1 or later (CE8)
[4] Requires TC Software Version TC5.1 or later. Not supported in (CE8)
All information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information.
