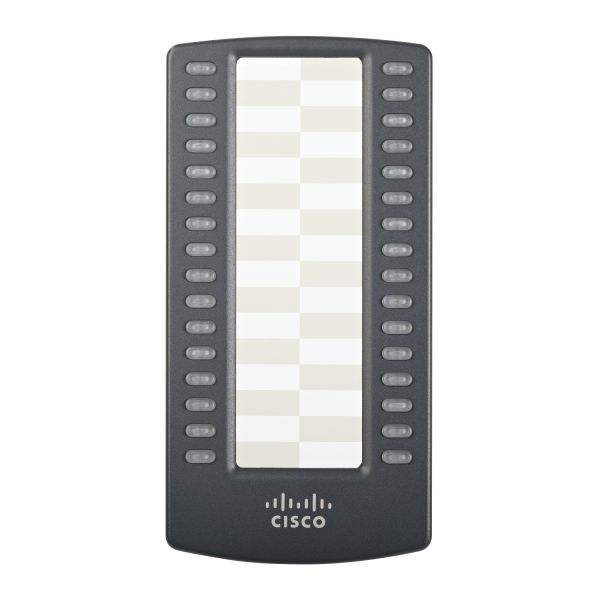

Cisco SPA500S Expansion Module

Cisco SPA500S Expansion Module

For Use With Cisco SPA500 Series of IP Telephones

The Cisco SPA500S® is a 32 Key Expansion Module that is part of the Cisco Small Business Series, and is designed for use with the Cisco SPA500 Series of IP Telephones. Ideal for small businesses who want to simplify incoming call handling by directing calls to the requested party or extension quickly, and who also want to monitor line status from a central location.

The Expansion Module easy attaches to an SPA500 Series IP Phone, providing 32 programmable speed dial or direct station select (DSS) buttons that each illuminate the lines status (Idle, Ringing, Busy or Null) via the BLF. Incoming calls can be immediately transferred to the correct extension by pressing the button assigned to the extension.

Up to two of the SPA500S Expansion Modules can be attached together, providing an extra 64 buttons, offering an affordable solution that expands with the growth of your voice network. Installation and set up takes a matter of minutes by connecting the supplied bracket and cable to the Expansion Module, which uses the phones power supply, no additional power supply is required.

Highlights

• Two Expansion Modules can be Linked, for a Total of 64 Buttons
• Easy to Install and Designed Exclusively for Cisco® SPA 500 Series of IP Telephones
• 32 Programmable Buttons that Simplify Dialing and the Tranferring of Calls
• Multicoloured LED's Monitor the Status of each Configured Voice Line Via Busy Lamp Field (BLF)

Features

• 32 Programmable Multicoloured LED Buttons
• Call Pickup
• One Touch Transfer
• Busy Lamp Field (BLF)
• DSS (Direct Station Select)
• Speed Dial
• Call Transfer
• Illuminated Line Status Monitoring - Green for Idle, Red for In Use, Blinking Red for Ringing, Orange for Registration Error

Specifications

• 2 Auxiliary Ports
• 32 Buttons
• Multicoloured LED's - Green, Red, Orange
• Dimensions - (W x H x D) - 4 x 8.5 x 1.5 Inches (101 x 201 x 39 mm)
• Unit Weight - 2lb (0.9kg)
• Power Provided by Host Cisco SPA500 Series IP Telephone

Minimum Requirements

• Cisco SPA500 Series IP Phone

In the Box

• Cisco SPA500S Expansion Module
• Attachment Arm
• Two Attachment Arm Screws
• Auxiliary Cable
• Desktop Stand
• Quick Start Guide
