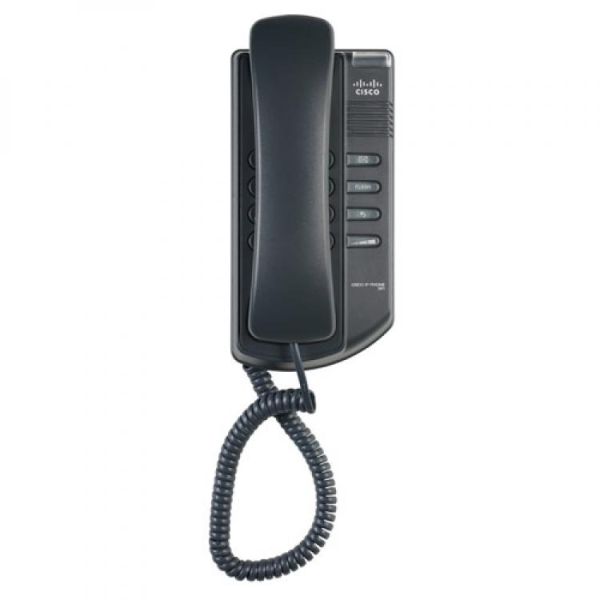

Cisco SPA301G 1-Line IP Phone

Based on SIP, the Cisco SPA 301 1-Line IP Phone has been tested to help ensure comprehensive interoperability with equipment from voice over IP (VoIP) infrastructure leaders, enabling service providers to quickly roll out competitive, feature-rich services to their customers.

With hundreds of features and configurable service parameters, the Cisco SPA 301 addresses the requirements of traditional business users while building on the advantages of IP telephony. Features such as easy station moves and shared line appearance (across local and geographically dispersed locations) are just some of the many advantages of the SPA301G.

Carrier Grade Security, Provisioning & Management

The Cisco SPA301G uses standard encryption protocols to perform highly secure remote provisioning and unobtrusive in-service software upgrades. Remote provisioning tools include detailed performance measurement and troubleshooting features, enabling network providers to deliver high-quality support to their subscribers. Remote provisioning also saves service providers the time and expense of managing, preloading, and reconfiguring customer premises equipment.

Telephony Features

• One Voice Line, Call Waiting
• Music On Hold*
• Oubound Caller ID Blocking**
• Call Transfer - Attended and Blind** (SIP Only)
• Three Way Call Conferencing With Local Mixing
• Multiparty Conferencing Via External Conference Bridge
• Automatic Redial of Last Call and Last Called Numbers
• Call Pickup - Selective and Group*
• Call Swap, Group Paging
• Call Back on Busy**
• Call Blocking - Anonymous and Selective**
• Call Forwarding - Unconditional, No Answer and On Busy**
• Hotline and Warm Line Automatic Calling
• Digits DIaled with Number Auto Completion
• Anonymous Caller Blocking**
• Support for Uniform Resource Identifier (URI) (IP) Dialing (Vanity Numbers)
• Multiple Ringtones With Selectable Ringtone Per Line
• Call Duration and Start Time Stored in Call Logs and Web GUI
• Distinctive Ringing Based on Calling and Call Number
• 10 User Downloadable Ringtones
• Speed Dialing, Eight Entries
• Configurable Dial/Numbering Plan Support
• Intercom*
• Support for Highly Secure Encrypted Voice Communications
• Option to Require Administrator Password to Reset Unit to Factory Defaults

*Feature Requires Support By Call Server

**Features Activated Via Feature Code

Hardware Features

• Voicemail Message Waiting Indicator Light
• Voicemal Message Retrieval Button
• Volume Control, Redial Button
• Flash Button, Standard 12 Button Dialing Pad
• High Quality Handset
• One Ethernet WAN port 10/100BASE-T RJ-45
• 5 VDC Universal (100–240V) Switching Power Adaptor Included

Security Features

• Password Protected System, Preset to Factory Defaults
• Password Protected Access to Administrator and User Level Features
• HTTPS with Factory-Installed Client Certificate
• HTTP Digest - Encrypted Authentication via MD5 (RFC 1321)
• Up to 256-bit Advanced Encryption (AES) Encryption

Package Contents

• Cisco SPA301G IP Phone
• Handset, Ethernet Cable
• Power Adapter, CD
• Quick Installation Guide
