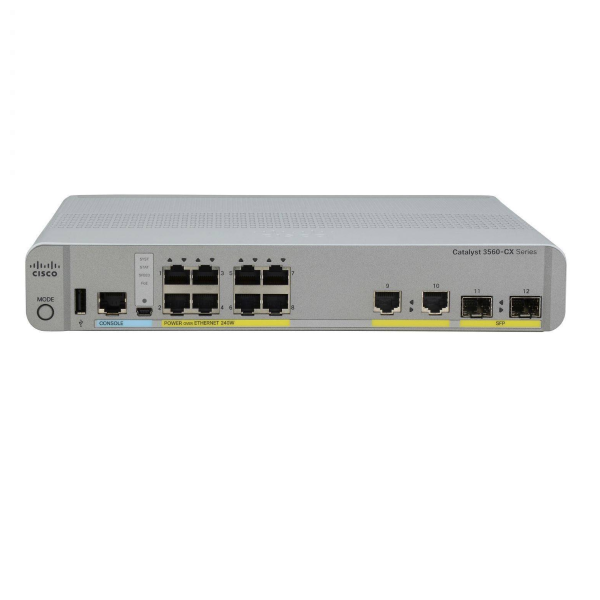

Cisco Catalyst WS-C3560CX-8PC-S Switch - Refurbished

The Cisco ® Catalyst® Compact Switches easily expand your Ethernet and Multi-gigabit Ethernet infrastructure outside the wiring closet to enable new workspaces, extend wireless LANs, and connect PoE devices.

These fanless, small form factor switches are ideal for space constrained deployments where multiple cable runs would be challenging.

With speeds that reach 10Gbps, the Cisco Catalyst 3560CX Multi-gigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.

Product Overview

The Cisco Catalyst 3560-CX Series of Compact Switches help optimise network deployments. These Gigabit Ethernet (GbE) and Multi-gigabit Ethernet (mGig) managed switches are ideal for high speed data connectivity.

Wi-Fi back haul, and Power over Ethernet (PoE+) connectivity in places where space is at a premium. With a single copper or fiber cable from the wiring closet, Cisco Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints.

With their quiet, fanless design and compact footprint, these switches can come out of the data closet and be placed closer to the users. This means shorter cable runs and greater flexibility as you grow your network.

Highlights

• Fanless Design and Silent Operation
• 8 Gigabit Ethernet Ports with Line Rate Forwarding Performance
• 6 Gigabit Ethernet Plus 2 Multi-gigabit Ethernet (100 Mbps/1/2.5/5/10 Gbps) with Line Forwarding Performance (Selected Models)
• Gigabit and Multi-gigabit (100 Mbps/1/2.5/5/10 Gbps) Copper, Small Form Factor Pluggable (SFP) or 10G SFP+ Uplinks
• Power over Ethernet Budget Plus (PoE+) Support with up to 240W of PoE Budget
• Power over Ethernet (PoE) Pass Through Enables the Compact Switch to Draw Cisco Universal PoE
• (Cisco UPOE™ ) Power from the Wiring Closet and Pass it to End Devices (Selected Models) with the Additional Option to be Powered by Auxiliary AC-DC or DC-DC Power Adapter
• Cisco Instant Access Mode to Enable Single Point of Management and Simplify Operation (Selected Models)
• Advanced Layer 2 (LAN Base) and Layer 3 (IP Base) Support with an Option to Upgrade to IP Services

Features and Benefits

• Small, Fanless Design, Silent Operation - Can be used in Work spaces and Other Areas that Cannot Tolerate Equipment Noise and Where Multiple Cable Runs could be Difficult or Expensive
• Flexible Mounting Options - The Switch can be Mounted on the Wall, Under a Desk, Rack, rack, DIN Rail, or Practically anywhere they are Needed
• 10 Gigabit SFP+ Uplinks - Accommodates Business Growth and Increased Traffic, such as Aggregate Upstream Gigabit Traffic Loads from 802.11ac Wi-Fi Access Points
• Increased PoE+ Scale - Provides up to 240W of PoE+ Budget (Twice the Power per Switch than Previous Series
• Perpetual PoE - Provides Uninterrupted Power to a Powered down Device even when the Switch is Booting. This Eliminates the need for a backup Power Source

Cisco Multi-gigabit Ethernet

With the enormous growth of 802.11ac and new wireless applications, wireless devices are driving the demand for more network bandwidth. This creates a need for a technology that supports speeds higher than 1 Gbps on all cabling infrastructure. Cisco Multi-gigabit Ethernet technology is a unique Cisco innovation that allows you to achieve bandwidth between speeds of 100Mbps and 10 Gbps over traditional Cat 5e cabling or above. In addition, the Multi-gigabit ports on the Cisco Catalyst Compact switch support PoE+, which is increasingly important for next-generation workspaces and Internet of Things (IoT) ecosystems. The Multi-gigabit Ethernet ports can also be used as uplinks to connect to traditional access switches such as the Cisco Catalyst 3850/4500 switches.

Cisco Multi-gigabit technology offers significant benefits for a diverse range of speeds, cable types, and PoE power. The benefits can be grouped into three different areas:

• Multiple Speeds - Cisco Multi-gigabit Technology Supports Auto-negotiation of Multiple Speeds on Switch Ports. The Supported Speeds are 100 Mbps, 1 Gbps, 2.5 Gbps, and 5 Gbps on Cat 5e Cable and up to 10 Gbps over Cat 6a Cabling
• Cable Type - The Technology Supports a Wide Range of Cable Types, Including Cat 5e, Cat 6, and Cat 6a or above
• PoE Power- The Technology Supports PoE and PoE+ for all the Supported Speeds and Cable Types

PoE Pass Through

PoE passthrough gives the ability to power PoE end devices through drawing Cisco UPOE from the wiring closet. The Cisco Catalyst WS-C3560CX-8PT-S has eight downlink ports with two Cisco UPOE input ports that allow it to be powered by another switch. These switches do not need a power supply and receive power over the uplink from an upstream PoE or Cisco UPOE device, providing deployment flexibility and availability. These switches are ideal for wiring constrained and space-constrained applications.

Product Details:

• Ethernet Ports - 8 x 10/100/1000 Gigabit Ethernet
• PoE Output Ports - 8 PoE+
• Available PoE Power - 240W
• Uplinks - 2 x 1G Copper Plus 2 x 1G SFP
• Default Software - IP Base (IP Services with RTU License)

Specifications

• Flash Memory - 128 MB
• Memory DRAM - 512 MB
• Max VLANS - 1023
• VLAN ID's - 4000
• Jumbo Frames - 9198 Bytes
• Indicators - Per Port Status - Link Integrity, Disabled, Activity, Speed, Full Duplex System Status: System, Link Status, Link Duplex, Link Speed
• Dimensions - 4.44cm x 26.9cm x 23.8cm, 1.75 Inches x 10.6 Inches x 9.4 Inches
• Weight - 2.27kg
