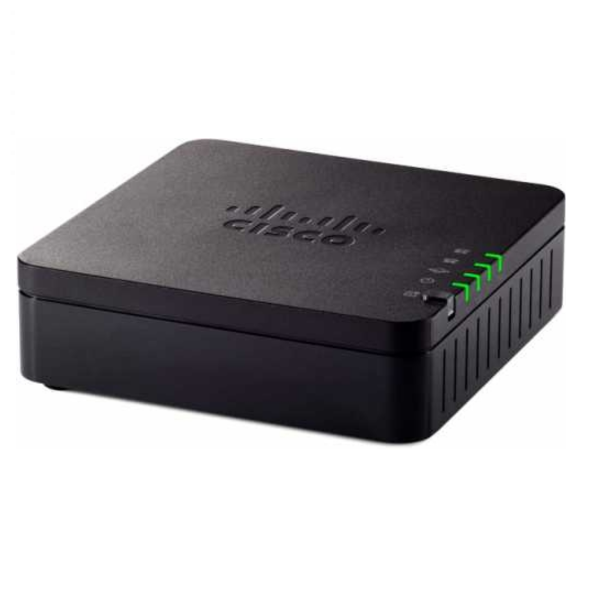

Cisco ATA192 Multiplatform Analog Telephone Adapter

Cisco ATA192 Multiplatform Analog Telephone Adapter

The Cisco® ATA 192 Multiplatform Analog Telephone Adapter is a 2 Port Handset to Ethernet Adapter then brings traditional Analog devices into the IP World.

The ATA 192 Multiplatform Analog Telephone Adapter turns traditional telephone, fax and overhead paging communications devices into IP devices for greater cost effectiveness. Customers can take advantage of IP telephony applications by connecting their analog devices to Cisco Analog Telephone Adapters.

The ATA 192 is the preferred solution to address the needs of customers who connect to Enterprise Networks, Small Offices or Unified Communications as a service from the cloud.

It has two standard FXS Ports, that can be configured independently as two Session Initiation Protocol (SIP) Registrations, as well as two 100BASE-T Ports with an integrated high-performance Router to extend local network connectivity. With the ATA 192, customers can protect and extend their existing investment in analog systems, as well as smooth their migration to pure voice over IP in a more affordable and reliable way. The ATA 192 is designed to work with third-party call control systems but does not work with Cisco Call Control Systems.

Features and Benefits

• Voice Quality - Offering Clear, Natural Sounding Voice Quality via Advanced Preprocessing, High Performance Echo Cancellation, Voice Activity Detection and Comfort Noise Generation
• Cloud Provsioning - Enables Zero Touch Provisioning via TR-069 and XML Configuration Files
• Security - Provides a Complete Security Solution for both Medial and Signaling
• Problem Reporting (PRT) - Improves Serviceability with a Dedicated PRT Button for Problem Reporting and Log Collection
• IPv6 - Enables IPv6 Dual Stack to Help with Migration to IPv6

Platform Support Information

• The Cisco ATA 192 Multiplatform Analog Telephone Adapter is designed to work with third-party Call Control Systems

Licensing Information

• No license is required to connect the Cisco ATA 192 Multiplatform Analog Telephone Adapter to third-party Call Control Systems

Specifications:

Features

• Physical Dimensions - 100mm x 100mm x 28mm (3.9 Inches x 3.9 Inches x 1.1 Inches) - H x W x D
• Weight - 4.7 oz (132.1g)
• Hardware - Interface -Two RJ-11 FXS Ports, Two 10/100 Mbps RJ-45 Ethernet Ports, Power Button - Reset / Problem Reporting (PRT) LED indicators - Power, Network, Phone 1, Phone 2, PRT Wall Mountable

Subscriber Line Interface Circuit

• Ring Voltage - 40 to 90 Vpk Configurable
• Ring Frequency Accuracy - 1%
• Ring Waveform - Trapezoidal or Sinusoidal
• Maximum Ringer Load - 3 Ringer Equivalence Numbers (RENs)
• On-Hook Voltage (Tip and Ring): -46 to -56V
• Off-Hook Current - 25mA +/- 10%
• Terminating Impedance - 600 ohm Resistive, 900 ohm Resistive, or 220 ohm + 820 ohm
• 120 nF Complex Impedance
• Frequency Response - 300 to 3400 Hz
• Return Loss (600 ohm, 300 to 3400 Hz) - Up to 26 dB
• Idle Channel Noise: <-65 dBm 0p
• Longitudinal Balance - 58 dB (Typical)
• Voice Quality Mean Opinion Score (MOS): >4.0
• Voice Quality Jitter: <150 ms

Networking

• MAC Address
• IPv4 Only
• IPv6 Only
• IPv4/IPv6 Dual Stack
• Session Initiation Protocol (SIP)
• Transmission Control Protocol (TCP)
• User Datagram Protocol (UDP)
• Real Time Protocol (RTP)
• Real Time Control Protocol (RTCP)
• HTTP
• HTTPS
• Trivial File Transfer Protocol (TFTP)
• Address Resolution Protocol (ARP)
• DNS A/AAAA and SRV records
• Dynamic Host Configuration Protocol (DHCP) client
• Internet Control Message Protocol (ICMP)
• Simple Network Time Protocol (SNTP)
• Cisco Discovery Protocol
• Link Layer Discovery Protocol (LLDP)
• Point-to-Point Protocol over Ethernet (PPPoE)

Routing

• Routing and Bridging
• Static and Dynamic Address Assignment
• Network Address Translation (NAT)
• DHCP Client Reservation
• MAC Address Cloning
• Port Forwarding
• DMZ Mode
• VPN Pass-Through - IP Security (IPsec) Encapsulating Security Payload (ESP), Point-to-Point Tunneling Protocol (PPTP), Layer 2 Tunneling Protocol (L2TP)

Quality of Service

• IEEE 802.1p/Q (QoS and VLAN tagging) Differentiated Services (DiffServ), Type of Service (ToS)

Telephony

• Anonymous Call and Call Blocking
• Call Forwarding - No Answer, Busy, and All
• Call Hold and Resume
• Caller ID Blocking
• Caller ID Generation (Name and Number) - Bellcore, BT, and European Telecommunications Standards Institute (ETSI)
• Caller ID with Name and Number
• Call Pickup and Group Pickup
• Call Transfer, Call Return, and Call Back on Busy
• Call Waiting
• Configurable Ring Frequency
• Configurable Tones and Cadences
• Disconnect Tone
• Distinctive Ringing - Calling and Called Number
• Do not Disturb
• Forced Authorization Code (FAC)/Client Matter Code (CMC)
• Flash Hook Timer
• Hook Flash Event Signaling
• Hotline and Warm Line Calling
• Message Waiting Indicator (MWI) Tones
• Music on Hold
• Off-Hook Warning Tone
• Polarity Control
• Redial
• Selective and Anonymous Call Rejection
• SIP Redundancy
• Speed Dial
• Streaming Audio Server - Up to 4 Sessions
• Three-Way Conference Calling with Local Mixing
• Tip and Ring Voltage Adjustment Setting
• Visual Messaging Waiting Indicator (VMWI) using Frequency Shift Keying (FSK)
• Network Address Translation (NAT)
• Session Traversal Utilities for NAT (STUN)

Audio

• Codec - G.711 a-law, G.711 μ-law, G.729a, G.729ab, G.726
• Codec Name Assignment
• Full-Duplex Audio
• Echo Cancellation
• Voice Activity Detection
• Silence Suppression
• Configurable Silence Threshold
• Comfort Noise Generation
• Adaptive Jitter Buffer
• Frame Loss Concealment
• Adjustable Audio Frames per Packet
• Call Progress Tone Generation
• Impedance and Gain Adjustment
• Dynamic Audio Payload

Features

• TR-069
• SSH Access
• Simple Network Management Protocol (SNMPv3)
• Report Generation and Event Logging
• Dedicated PRT Button
• Support for RTP Statistics
• Syslog (Multilevel Granularity)
• Ping and Trace Route Diagnostics
• Configuration Management - Backup and Restore
• Dual Image

Cisco ATA192 Multiplatform Analog Telephone Adapter Package Contents

• Cisco ATA192 - 2 Port Analue Telephone Adapter for Multiplatform
• Power Supply
• Ethernet Cable
