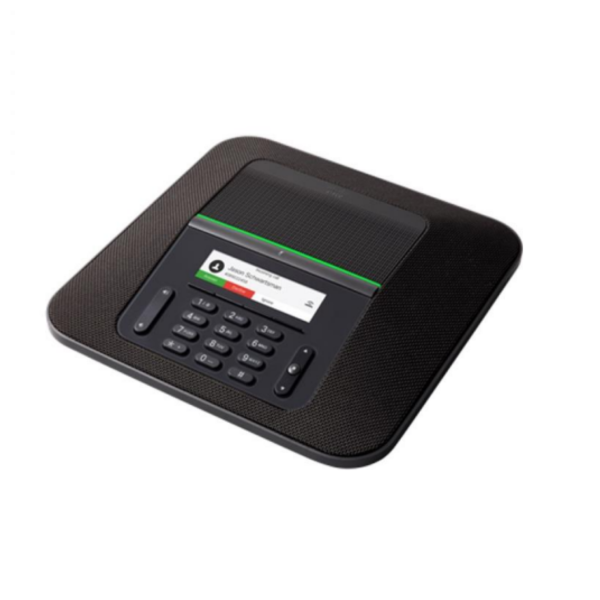

Cisco 8832 IP Conference Phone

Business Class IP Conference Phone for large Meeting Rooms and Exexutive Offices - Available in New or Refurbished

About the Cisco 8832

The Cisco® 8832 IP Conference Phone makes communication easy, reliable, and highly secure. It helps users collaborate with colleagues, suppliers, and customers to advance business goals.

The Cisco® 8832 IP Conference Phone enhances people centric collaboration by delivering easy to use audio conferencing with astounding voice quality and clarity. The newly developed microphones and loudspeakers provide the richest sound of any conference phone on the market. The unique acoustic design includes a 'Studio-Monitor' full range speaker. The loudspeaker architecture provides a dynamic, detailed sound with low distortion and low frequency clarity, making conferencing an in person experience with exceptional clear and natural audio quality.

The Cisco® 8832 IP Conference Phone provides a simple, flexible, scalable solution that meets the challenges of most diverse rooms. The Base Unit alone provides 360 degree coverage for any 20 x 20 foot room and up to 10 participants. The optional wired extension microphone kit covers any 20 x 34 foot room and up to 22 participants. With the optional wireless extension microphone kit (using Digital Enhanced Cordless Telecommunications (DECT) Technology, it covers any 20 x 40 foot room and up to 26 participants. With a daisy chain configuration of two 8832 IP Conference Phones along with the optional wireless extension microphone kit, it covers up to a 20 x 57 foot room and up to 42 participants, making it ideal for Executive Offices, Conference Rooms and Boardrooms.

The 8832 IP Conference Phone has a Sleek form by using Approachable Materials, for a Modern Look and Feel. The Key Design Elements Include the Following:

• 3.9 Inch 480 x 128 Pixel Colour LCD
• Textile Cover for Soft Touch and Durability
• Large Mute Button in the Middle of the Device
• LED Indicator above the Mute Button Showing the Call Status
• Raised Edge for Easier Handling and Repositioning on Tabletop
• Crisp, Precise Button Tactility
• Single USB-C Port on the Device to Minimise the Number of Cables on the Table (An Ethernet Injector is Required for any Non Wi-Fi Deployment)

Key Features

• 360 Degree Room Coverage - Base Unit Alone Covers up to a 10 Foot Microphone Pickup Range
• Single Line with a User Experience of Multiple Calls Per Line
• Session Initiation Protocol (SIP) Signaling
• Codec Support, Including G.711(u/A), G.729a, G.729ab, iLBC, G.722, and OPUS
• IPv6 Support, Wi-Fi Support, Daisy Chain Support
• Secure Hash Algorithm (SHA)-256 Enabled for Advanced Security Features
• Mobile and Remote Access (MRA) Support
• Wired Extension Microphone Support
• Wireless Extension Microphone Support
• Client Matter Code (CAC) and Forced Authorization Code (FAC) Support
• Compatible with both IEEE 802.3af and 802.3at Power over Ethernet (PoE) Class 3 Consumption (Both PoE and non PoE Ethernet Injector options are Available)

Participants

• Base Unit Alone - Up to 10 Participants
• With the Optional Wired Extension Microphone Kit - Up to 22 Participants
• Using the Optional Wired Extension Microphone Kit and DECT Technology - Up to 26 Participants
• With a Daisy Chain Configuration of 2 x 8832 IP Conference Phones along with the Optional Wired Extension Microphone Kit - Up to 42 Participants

Features and Benefits:

Hardware Features

• Graphical Display - 480 x 128 Pixel Backlit 24 bit Colour LCD , 3.9-in. (9.9-cm) Diagonal
• Ethernet Switch - 10/100 BASE-T Via an Ethernet Injector
• Keys - The Phone has the Following Keys - Four Context Sensitive Soft Key Bars, Two Way Navigation Bar and Select Button, Standard Keypad, Volume Control Bar, Large Mute Key
• IEEE PoE - IEEE PoE Class 3- Compatible with Both IEEE 802.3af and 802.3at Switch Blades- Supports both Cisco Discovery Protocol and Link Layer Discovery Protocol - Power over Ethernet (LLDP-PoE)
• Call Control Support - Native Support in Cisco Unified Communications Manager 12.0(1); DevPack Required for Cisco Unified Communications Manager 10.5.2, 11.0, and 11.5

Call Features

• +Dialing
• Adjustable Ring Tones and Volume Levels
• Barge, Call Forward
• Call History Lists
• Call Timer, Call Waiting
• Caller ID, Corporate Directory
• Conference, Hold
• Mute, Redial
• Predialing Before Sending
• Shared Line
• Speed Dial (Favourites)
• Time and Date Display
• Transfer
• Voicemail Messages

Network Features

• Session Initiation Protocol (SIP) for Signaling
• Session Description Protocol (SDP)
• IPv4, IPv6
• User Datagram Protocol (UDP) (Used only for Real-Time Transport Protocol Streams)
• Dynamic Host Configuration Protocol (DHCP) Client or Static Configuration
• Gratuitous Address Resolution Protocol (GARP)
• Domain Name System (DNS)
• Trivial File Transfer Protocol (TFTP)
• Secure HTTP (HTTPS)
• VLAN
• Real-Time Transport Protocol (RTP)
• Real-Time Control Protocol (RTCP)
• Cisco Discovery Protocol
• LLDP (including LLDP-MED)
• Switch Speed Auto Negotiation

Security Features

• Secure Credential Storage
• Image Authentication
• Random Bit Generation
• Manufacturer Installed Certificates (MIC's)
• Secure Boot
• Ethernet 802.1X Supplicant Options - Extensible Authentication Protocol – Flexible Authentication via Secure Tunneling (EAP-FAST) and Extensible Authentication Protocol – Transport Layer Security (EAP-TLS)
• Signaling Authentication and Encryption using TLS v1.2
• Media Authentication and Encryption Using SRTP
• HTTPS for Client and Server
• Secure Shell (SSH) Protocol Server

Weights and Dimensions

• Weight - 4.07lb (1.85kg)
• Dimensions - 278mm x 278mm x 61mm (10.9 Inches x 10.9 Inches x 2.4 Inches) - H x W x D
