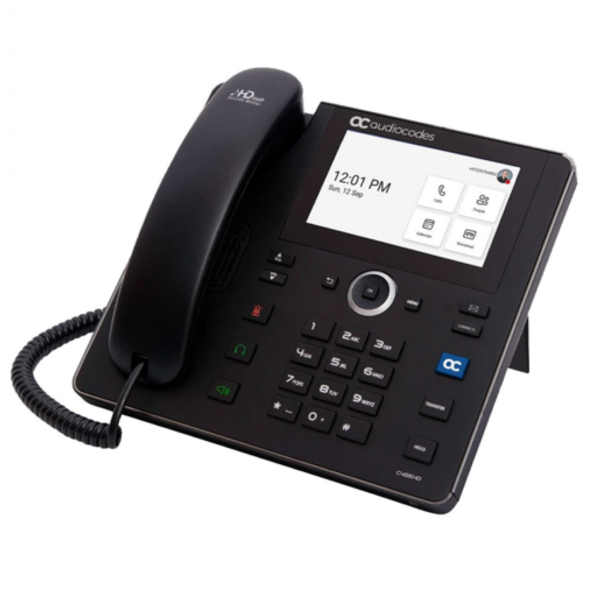

AudioCodes C455HD-DBW Teams IP Phone

A Native, High End Business IP Phone for Microsoft Teams with a Large 5 Inch Colour Touchscreen & Keypad with Features that Include a Full Duplex Speakerphone, USB Headset Support, PoE, Multiple Language Support, 8 Programmable Soft Keys, Bluetooth & Integrated Dual Band  2.4GHz & 5GHz Wi-Fi - Optional Colour Expansion Module Available

About the AudioCodes C455HD-DBW

The AudioCodes 400HD Series of native Microsoft Teams IP Phones are a range of easy to use, feature rich Phones for boosting workplace productivity by providing a superior Microsoft Teams experience.

Each IP Phone offers reliable, high quality communication and is packed with advanced features that deliver crystal clear voice quality, superb image clarity, calendar synchronisation and one click join functionality for seamless integration with any Microsoft Teams deployment.

The C455HD-DBW is a feature rich executive high end business Phone that is equipped with a large, intuitive 5 Inch Colour Touch Screen and exceptional HD sound quality ensures that every conversation is productive. An optional 5 Inch Colour Touch Expansion Module is available (not Included) for enahnced productivity, that brings your Microsoft Teams meetings to life.

One click join for advanced Teams meetings, meeting call controls include mute, unmute, hold, resume, end call, and and remove participants and meeting details.

Multiple Connection Options

The C455HD-DBW is a PoE (Power over Ethernet) device, with USB and Bluetooth* Headset support. Two USB-A Ports are provided at the back of the Phone, one Black and one White Port, for USB Headset connectivity, the USB Headset needs to be plugged into the White Port. Bluetooth* 4.2 is for Bluetooth* Headset connectivity. Dual Band 2.4GHz and 5GHz Wi-Fi* is also integrated into the C455HD IP Phone.

_{*Bluetooth and Wi-Fi is only Supported in Specific Regions Including USA, Canada, The EU, Switzerland and Israel and others}

High Quality Audio

Its full Duplex Speakerphone, Acoustic Echo Cancellation, Comfort Noise Generation and Voice Activity Detection ensure incredible superior sound and voice quality, with every word captured on both ends of the line.

Mechanical Keys

The AudioCodes C455HD-DBW has been designed with mechanical keys with a backlight for Mute, Speaker and Headset, and mechanical keys without a backlight for Transfer, Hold, Redial, Contacts, Back and 4 Way Navigation with OK.

Touch Screen

As well as having a keypad, the AudioCodes C455HD-DBW has a virtual keyboard and a multi-language 5 Inch Colour TFT  Touch Screen that enables up to 8 programmable keys.

Features

• 8 Lines - 5 Inch Colour Touch Screen User Interface Enabling up to 8 Programmable Keys
• Optional Colour Expansion Module Available (Not Included)
• Native Support for Microsoft Teams
• Graphical 5 Inch Colour Touch Screen (1280 x 720) - With Multi-Lingual Support
• USB Headset Support, Full Duplex Speakerphone
• Integrated Bluetooth 4.2 for Bluetooth Headset Connectivity
• Android OS 9.0, Kensington Lock
• Dual Band 2.4GHz and 5GHz Wi-Fi
• PoE (Power over Ethernet) or External Power Supply (External Power Supply not Included)

Technical Specifications:

User Interface

• Intuitive Touch Screen
• Virtual Keyboard
• Multi-Language Support
• Mechanical Keys with a Backlight for Mute, Speaker and Headset
• Mechanical Keys without a Backlight for Transfer, Hold, Redial, Contacts, Back and 4 Way Navigation with OK
• Dedicated Presence Indication LED (Red / Green / Yellow)
• Multi-Lingual UI Support

Media Processing

• Voice Coders - G.711, G.729, G.722, SILK
• Acoustic Echo Cancelation
• Adaptive jitter buffer
• Voice Activity Detection
• Comfort Noise Generation
• Packet Lost Concealment
• RTP/RTCP Packetisation (RFC 3550, 3551), SRTP (RFC 3711)

Network and Security Features

• HTTP/HTTPS Secured Provisioning
• UDP/TCP, NTP, DNS/SRV
• RTP/RTCP Packetisation (RFC 3550, RFC 3551), SRTP (RFC 3711)
• TLS Version 1.2 - Secured Transport Layer
• 802.1x for Secured Network Access
• VLAN Discovery Modes: CDP-LLDP, CDP only or LLDP only
• Support for HTTP Proxy and PAC File, either Manually or via DHCP Option 252

Wired Connectivity

• RJ-9 Handset, USB Headset
• Two x RJ-45 Gigabit Ethernet (GbE) (10/100/1000BaseT Ethernet) Ports for WAN and LAN

Screen Orientation

• Landscape

Wi-Fi

• Dual Band 2.4GHz and 5 GHz 802.11b/g/n Wi-Fi Support

Bluetooth Connectivity (Headset)

• Bluetooth 4.2

PoE Class

• 3 (IEEE802.3af)

DC Power Jack

• 12V, Optional External Power Supply - 2A/12V 100~240V

Base Stand Options

• Detachable Base, 2 Positions, Wall Mount

Weight and Dimensions

• Weight - 1.014kg
• Dimensions  - 2 Stand Positions - 236mm x195mm x 197.5mm (W x D  x H), 236mm x 200mm x 165.9mm (W x D x H)

Package Contents

• AudioCodes C455HD-DBW Teams Touch IP Phone
• Handset and Curly Cord
• Cat 5e Ethernet Cable
• Desktop Stand
• Wall Mount
