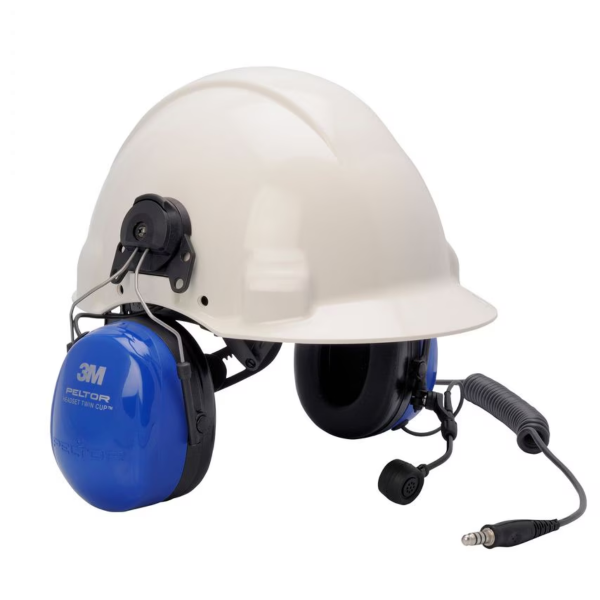

3M™ Peltor Twin Cup Atex Helmet Mounted Headset

The 3M™ PELTOR™ Twin Cup Headset with an Optimised Acoustic Design and Excellent Space for the Ears for the Best Possible Sound Quality and Comfort

About the 3M™ Peltor Headset

The 3M™ PELTOR™ Twin Cup High Attenuation Headset combines advanced noise reduction technology along with comfortable ear cups that feature double shell technology to provide superior hearing protection. Its noise compensating microphone delivers crystal clear communication, even in the loudest conditions. With its distinctive blue colour that indicates the Ex/ISCertfied Design - this Headset is certified for use in explosive atmospheres (IECEx/ATEX/UKEX/CSA).

Key Features

• ATEX Approved for use in Areas where Intrinsic Safety is Required
• Dynamic Noise Cancelling Microphone
• Twin Cup Technique for Increased Attenuation
• Quick Postion Microphone Boom Arm
• Soft Foam Covered with PVC Ear Cushions
• Bright Blue Colour Indicates Ex/IS Certified Design
• Certified to IECEx/ATEX7UKEXa and CSA Standards

Applications

The Peltor™ Twin Cup Headset, ATEX approved, is designed to be used in industrial areas where intrinsic safety is required.

Standard and Approval

MT72H540P3E-50 is in conformity with the provisions set out in the PPEdirective 89/686/EEC, the EMC directive 2004/108EC and the ATEX directive 94/9/EC. Thereby it fulfils the requirements for CE marking. The product has been tested and approved in accordance with EN352-3:2002, EN352-6:2002, EN 60079-0:2006, EN60079-11:2007. The product has been verified according to: EN 61000:6-2:2005.

Technical Specifications:

Materials

• Helmet Attachment - Stainless Steel
• Cups - ABS
• Ear Cushions - PVC Covered PU Foam

Microphone

• Microphone Type - Noise Cancelling Dynamic Microphone
• Sensitivity: -60dB+-3dB (0dB=1V/Pa @ 1 kHz)
• Impedance - 230 Ω +20% -10%

Cable and Connector

• 0.5–1.4-m Cable Curled PU with Connector Type TP-120

Package Contents

• 3M™ PELTOR™ Twin Cup Headset
• User Manual
