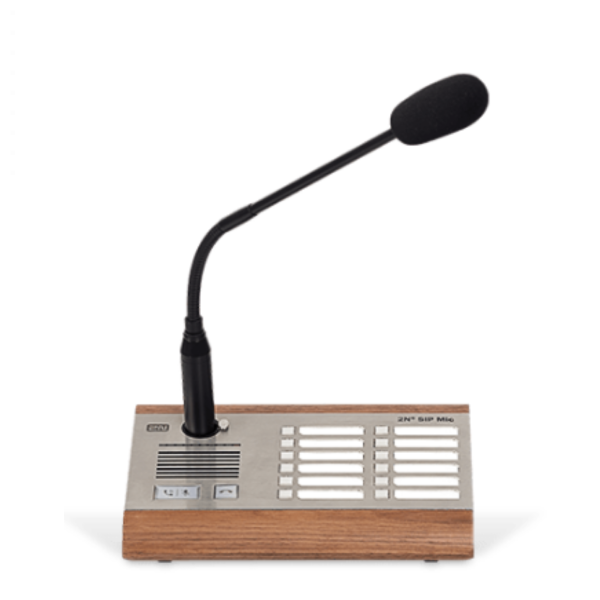

2N SIP Mic

The 2N® SIP Mic is an IP Microphone Console that Plays Live or Pre-Recorded Announcements to up to 12 Zones

About the 2N® SIP Mic

The 2N SIP Mic Console plays pre-recorded or live announcements to up to 12 Zones, together with the 2N SIP Speaker, it provides a complete voice announcement distribution system.

The 2N SIP Mic can accept calls from 2N intercoms, listen to the zone traffic, schedule announcements and / or load its own messages, making it an ideal solution for places where identical announcements are played several times a day including Schools, Amusement Parks and Public Transport Terminals.

With integrated VAPIX®, 2N SIP Mic is capable of playing announcements to AXIS® audio systems and cameras.

All these features are available without the need for additional hardware or software.

Pre-Recorded Announcements

Upload or record a message via the Microphone and play it back by the simple push of a button to a designated zone.

Serverless Paging - Up to 12 Zones

The 2N SIP Mic uses multicast technology and sophisticated control mechanisms to deliver reliable and scalable communication. With the ability to broadcast to up to 12 zones, this versatile microphone console is ideal for large facilities and complex environments. Connection of the SIP Mic is straight forward, no server is needed.

Integration with an AXIS Solution

The SIP Mic offers seamless integration with AXIS Audio Manager central control software. Additionally, its support for AXIS Vapix® enables you to broadcast announcements using AXIS Cameras or Speakers, expanding your communication options.

Listen in Function

With a simple press of a button, you can listen into what is happening in certain zones.

Two Way Communication

Call from the 2N IP intercoms to the Paging Console with an inbuilt Speaker thanks to SIP protocol.

Easy Configuration

Setup zones, priorities and announcements prepared in advance in the clean web interface.

Single Cable Installation

Designed for quick and easy installation the 2N SIP Mic simply connects to an existing IP network with a single PoE Cable.

Support for IP PBX (SIP)

The 2N SIP Mic can function independently or it can be connected to IP PBX.

Features

• Ideal for Schools, Healthcare Environments, Offices, Sports Facilities Amusement Parks and Public Transport Terminals
• Serverless Paging - Up to 12 Zones
• Two Way Communication
• Pre-Recorded Announcements
• Easy to Configure
• Seamlessly Integrate with AXIS Solutions
• Easy Installation with a Single PoE Cable
• Support for IP PBX (SIP)

Technical Specifications:

Audio Stream

• SIP 2.0 RTP Multicast, VAPIX®
• Audio Codecs - G.711u, G.722
• Speakers - 2 Built in Stereo Power Output 2x1W

Interfaces

• Logical Inputs - 2 Galvanically Separated, Sensitive to Contact or Voltage from 5 to 48 V
• Relay Output - 1 Galvanically Isolated, NO and NC Contact, Max Load 48 V, 1 A
• Headphone Output - 3.5mm Jack, Stereo, Power Output 2x30 mW, min. Load Impedance of 16 Ohm, DR. 101 dB, THD+N -85 dB
• Primary Microphone Input - Symmetric, XLR, Integrated Phantom Power Supply 24 V, DR 88 dB, THD+N -82 dB
• Headset Microphone Input - 3.5mm Jack, Integrated Power Supply for Electret Microphones, DR 84 dB, THD+N -78 dB
• Line Input - 3.5mm Jack, Symetrický Mono Nebo Nesymetrický Stereo, DR 93dB, THD+N -82dB

Buttons and Labels

• Label Dimensions - 39.6mm x 9mm (W x H)
• Large Button to Talk - 25.5mm x 12mm
• Small Button (To Listen) - 12mm x 12mm

Weight and Dimensions

• Weight - 1.6kg Approximately
• Dimensions - 209mm x 65mm x 143mm

Package Contents

• 2N SIP Mic
• Quick User Guide
