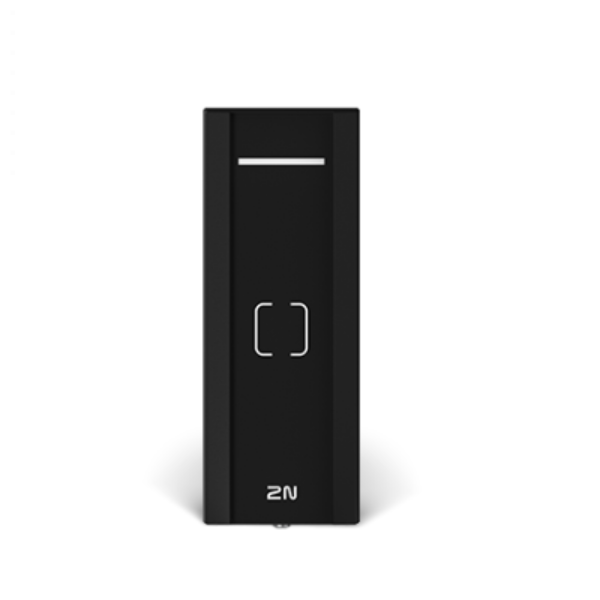

2N Access Unit M, RFID 13.56 MHz, NFC, 3m Cable

An Easy to Install Slim. Elegant Access IP System that is Perfect for Offices - RFID 13.56 MHz, NFC Ready, 3M LAN Cable

About the 2N® Access Unit M

The 2N Access Unit M offers a flexible and secure solution for managing access to your business. With its ability to read most RFID cards at 13.56 MHz frequency, it's ideal for companies that prefer traditional RFID technology.

For employees who prefer not to carry a physical card, the Access Unit M also supports NFC technology (Android Devices Only). Download the My2N App from Google Play for Android Devices, and simply tap your compatible smartphone to gain access, providing a convenient and modern alternative.

Easily manage and control your access system using the secure web interface or the 2N Access Commander software. This centralised approach simplifies administration and reduces the need for on site maintenance.

The 2N Access Unit M can be used inside or outside of buildings, the IP55 and IK07 protection ratings ensure that the Unit M is protected from dust, water and accidental impact.

Slimline Design

Designed with space constrained environments in mind, the 2N Access Control Unit offers a sleek and unobtrusive solution. Its compact design makes it ideal for installation in areas where space is limited, including door frames in front of meeting rooms.

Hassle Free Installation

Experience a hassle free installation process with the innovative Access Control Unit. The nearly 3m long Ethernet Cable males the installation process of the 2N Access Unit effortless.

Simply pull the device through the door frame and into the ceiling, then connect it to your existing IP infrastructure. For wall mounting, convenient installation boxes are available to ensure a seamless integration.

Controller and Reader in One

The compact and efficient Access Control Unit combines powerful technology into a single unit, eliminating the need for additional cabling and external controllers. This streamlined design simplifies installation and reduces maintenance costs.

IP55 Rating / IK07 Impact Rating

The 2N Access Unit M is built to withstand daily use and with an IP55 protection rating ensures that the Unit is protected from dust and water making it suitable for both indoor and outdoor installations.

Its toughened glass front panel ensures lasting durability and a scratch free finish, even after years of use.

IK07 Impact Protection Rating enables the 2N Access Unit M to withstand 2 Joules of impact energy, ideal for areas where there is a risk of impact but the risk is not excessive.

Reads Secure RFID Cards

Eliminate the threat of access card copying, 2N's MIFARE® DESFire® cards, encrypted with 2N® PICard technology, offer the ultimate in security. These cards are designed to prevent unauthorised access, ensuring the safety of your people and property.

2N PICard technology provides an extra layer of protection, making your access control system virtually impenetrable.

MIFARE® DESFire® cards are known for their durability and reliability, ensuring long lasting performance.

The Following RFID Cards can be Read:

• ISO14443A (MIFARE DESFire)
• PicoPass (HID iClass)
• Felica
• ST SR(IX)
• 2N Mobile Key

Features

• RFID, 13.56MHz, NFC Ready, 3M LAN Cable Version
• Elegant Slimline Design
• Flexible Access Methods
• Controller and Reader in One
• IP55 Rating from Water and Dust
• Variable Mounting Options - Brick, Plasterboard, Flush Mounting, Wall Mounting, Door Frame Mounting
• Integrated Electric Lock Switches with Wide Setting Options
• Integrated RFID Card Reader Module
• LAN (PoE) or Optional External Power Supply (Power Supply not Included)
• Configuration Using Web Interface
• HTTP Server for API Configuration
• SNTP for Client Time Synchronisation
• SMTP Client for Email Sending, Picture to Email Feature
• TFTP / HTTP Client for Automated Firmware and Configuration Upgrade and Update
• Flush Mount and Surface Mount Accessories are Available to Purchase Separately

Specifications:

Power Supply

• Type - PoE and / or 12V/1A DC
• PoE - 802.3af (Class 0–12.95 W)

Interfaces

• LAN - 10/100 BASE-TX Auto-MDIX, RJ-45 Male (2,9m Pigtail)
• Recommended Cabling - Cat5e or Higher
• Active Switch Output - 8 to 12 V DC / Max 600 mA
• Passive Switch - NO/NC relay, 30V 1A AC/DC
• Inputs - 2 inputs - In Passive / Active Mode (-30 VDC to + 30 VDC), OFF = OPEN or Uin > 1.5 V, ON = CLOSED or Uin < 1.5 V
• Tamper Switch - Native Part of the 2N Access Unit M
• Audio - Bizzer, 1W / 8ohm
• Supported Protocols - DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog

Mobile Application Support

• Android 6.0 and Higher, iOS 12.0 and Higher

RFID Card Reader

• Supported Frequencies - 13.56MHz
• 13.56MHz Reads - UID (CSN): ISO14443A, PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (2N® Mobile Key, Reads - Secured MIFARE® DESFire® EV2/EV3 Cards using
  2N® PICard Technology

General Specifications

• Frame - Tempered Glass with Rugged Plastic
• Weight - 0.5kg Max
• Dimensions - 50mm x 133mm x 27mm (W x H x D)
• Rating - I55 and IK07

Package Contents

• 2N Access Unit M
• Metal Wall Holder (Screwed to Device)
• 2 x 8mm Dowels
• 2 x Screws with Washers
• Screw for Fitting Access Unit into Holder
• Torx Key (10 / 20 Size)
• Certificate of Ownership
• Manual
