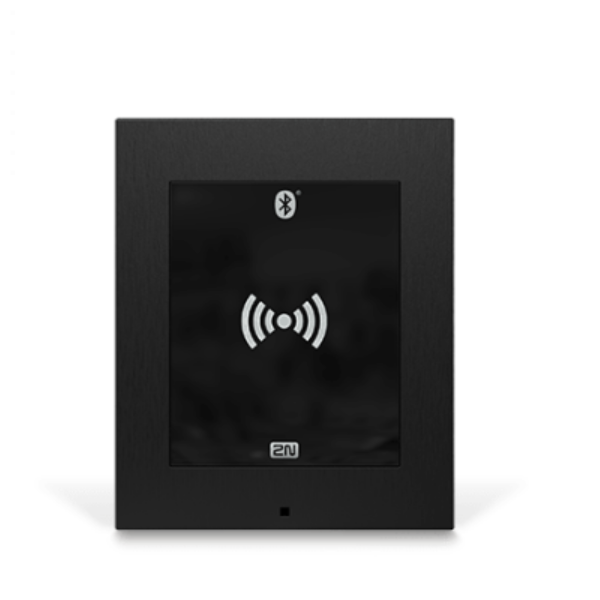

2N Access Unit 2.0 - Bluetooth, RFID, Secured

A Versatile Door Access Unit Combining Two Access Technologies in a Single Device - Smartphone Access and Secured RFID Access

About the 2N® Access Unit 2.0

The innovative Smart Reader from 2N offers unparalleled flexibility and convenience. Its robust IP54 rated design ensures that it can withstand splashes of water and dust, whilst the IK08 protection rating protects from accidental impact.

Unlike other access systems on the market the Access Unit 2.0 is a revolutionary modular system designed to meet your unique requirements. Unlike traditional, rigid systems, the 2N Access Unit 2.0 offers unparalleled flexibility and customisation.

Easily expand your system as your requirements change, adding new features and functionality whenever necessary. Enjoy intuitive setup and management, making it simple to tailor your access system to your preferences.

With two integrated access technologies, you can choose the method that best suits your needs.

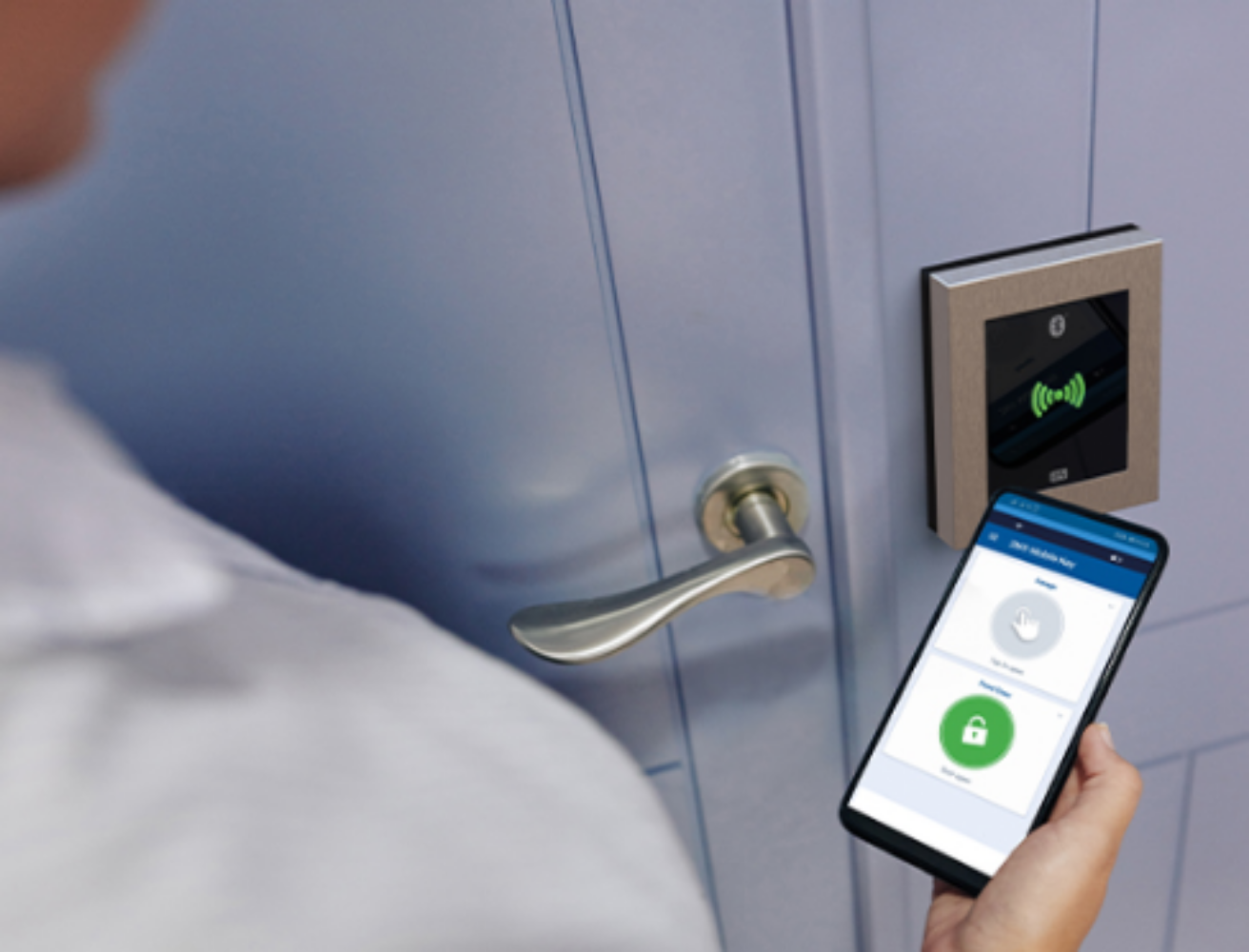

Enjoy the ease of using your Smartphone via Bluetooth for seamless entry.

For a classic approach, use RFID Cards for secure entry.

Ideal for Residential Projects

Don't settle for ordinary access control systems. The sleek and modern 2N Access Unit 2.0 is designed to not only provide reliable security but also enhance the aesthetic appeal of your space. Black and Nickel Frames are available to order separately, for Surface Mounting or for In the Wall Mounting.

No Controller Needed

Say goodbye to the hassle of controllers and tangled cables. The 2N Access Unit 2.0 is designed to be completely self sufficient, offering a streamlined and hassle free access control experience.

Installation Options

As a standalone Access Unit, the Access Unit 2.0 requires a Frame Mount to be Flush Mounted or Surface Mounted.

The flush mounted Access Unit 2.0 protrudes around 5mm and looks elegant, of course if you do prefer you can install it on a surface, if you dont want to drill a hole you can stick the 2N Access Unit 2.0 onto a glass surface.

Surface Frame Mounts and Flush Frame Mounts are available separately in Nickel Finish and Black Finish:

• Nickel Surface Frame Mount
• Black Surface Frame Mount
• Nickel Flush Frame Mount
• Black Flush Frame Mount
• Flush Installation Requires the Flush Installation Mounting Box

Fast Bluetooth Technology

If you dont want the hassle of an RFID Card or Pin Code Access, 2N's WaveKey technology offers a faster, more convenient, and equally secure way to open doors.

Quick Installation

The intuitive design makes installation a breeze. Simply plug in the UTP cable and connect the Access Unit to your lock, and you're ready to go all in around 4 minutes!

Timeless Solution

Easily add or remove components as your needs change, ensuring your system remains flexible and efficient. Expand your system to accommodate growth or changing requirements without the need for a complete overhaul.

IP54 Rating / IK08 Impact Rating

The 2N Access Unit 2.0 is built to withstand daily use and with an IP54 protection rating ensures that the Unit is protected from dust and water splashes, making it suitable for both indoor and outdoor installations.

IK08 Impact Protection Rating enables the 2N Access Unit 2.0 to withstand 5 Joules of impact energy, ideal for areas where there is a risk of impact.

Reads Secure RFID Cards

Eliminate the threat of access card copying, 2N's MIFARE® DESFire® cards, encrypted with 2N® PICard technology, offer the ultimate in security. These cards are designed to prevent unauthorised access, ensuring the safety of your people and property.

2N PICard technology provides an extra layer of protection, making your access control system virtually impenetrable.

MIFARE® DESFire® cards are known for their durability and reliability, ensuring long lasting performance.

The Following RFID Cards (125 kHz) are Supported)

• EM4x02
• HID Prox – Versions with 125 kHz Support (Secured Only)

The Following RFID Cards (Secured 13.56 MHz) are Supported)

• ISO14443A (MIFARE DESFire)
• PicoPass (HID iClass)
• FeliCa
• ST SR(IX)
• NFC 2N® Mobile Key
• HID SE (Seos, iClass SE, MIFARE SE)
• Reads Secured MIFARE® DESFire® EV2/EV3 Cards using 2N® PICard Technology
• Reads PACs ID (HID iClass Cards with SIO Object)

Features

• Two Access Technologies in One Device - Smartphone and Secured RFID Card
• Elegant, Robust Design
• IP54 And IK08 Ratings
• Compatible with 2N PICard Technology
• Surface Mounts and In the Wall Mounts Available to Purchase (Not Included)
• Bluetooth Technology, Multi-Frequency RFID Card Reader
• LAN (PoE) or Optional 12V Power Supply (Not Included)
• Supports Android 6.0 and Higher, ios 12.0 and Higher

Technical Specifications:

Power Supply

• PoE and / or 12V / 1 A DC
• PoE - 802.3af (Class 0–12.95 W)

Interfaces

• LAN - 10/100BASE-TX with Auto-MDIX, RJ-45 Jack
• Recommended Cabling - Cat5e or Higher
• Active Switch Output - 8 to 12 V DC/ Max 600 mA
• Passive Switch - NO/NC Contacts, up to 30 V/1 A AC/DC
• Inputs - 2 inputs - In Passive / Active Mode (-30 V to +30 V DC), OFF = open or Uin> 1.5 V, ON ON = short-circuit or Uin< 1.5 V
• Tamper Switch - Native Part of the 2N Access Unit 2.0
• Audio - Buzzer (97dBA)
• Supported Protocols - DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog

Bluetooth Reader

• Version - Compatible with Bluetooth 5.0 (BLE)
• Security - RSA-1024 and AES-128 Encryption
• RX Sensitvity - up to -93 dBm
• Mode - Touch, Tap in App, Card
• Range - (Short - Typically up to 3m*, Long - Typically up to 10m*)

_{*Distances Should Serve only as an Approximate Guide and May Vary Depending on the Phone Model and Installation Environment}

Mobile Application Support

• Android 6.0 and Higher, iOS 12.0 and Higher

Supported Frequencies

• 125 kHz and Secured 13.56 MHz

Weight and Dimensions

• Weight - 0.8kg Maximum
• Dimensions With Surface Mounting Frame - 107mm x 130mm x 28mm (W x H x D)
• Dimensions With Flush Mounting Frame - 130mm x 153mm x 5mm (W x H x D)
• Flush Mounting Box (Minimum Hole) - 108mm x 131mm x 45mm (W x H x D)

Expansion Modules

• 2N Access Unit 2.0 Supports Modules from the 2N® IP Verso intercom - RFID Card Readers, Keypad, Fingerprint, Bluetooth, I/O Module, Wiegand, etc - Modules are not Included

Package Contents

• 2N Access Unit 2.0
• Certificate of Ownership
• Quick Start Manual
• Hex Key
