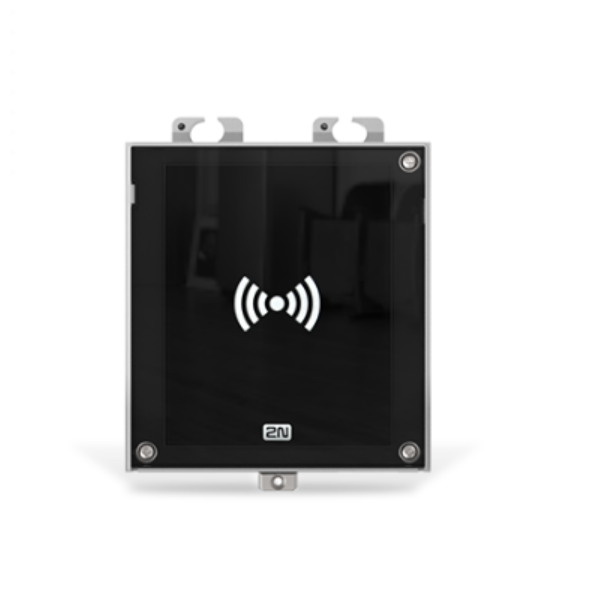

2N Access Unit 2.0 - RFID 13.56 MHz - Secured

A Versatile Door Access Unit with 13.56 MHz Secure RFID Access

About the 2N® Access Unit 2.0

The innovative Smart Reader from 2N offers unparalleled flexibility and convenience. Its robust IP54 rated design ensures that it can withstand splashes of water and dust, whilst the IK08 protection rating protects from accidental impact.

Unlike other access systems on the market the Access Unit 2.0 is a revolutionary modular system designed to meet your unique requirements. Unlike traditional, rigid systems, the 2N Access Unit 2.0 offers unparalleled flexibility and customisation.

Easily expand your system as your requirements change, adding new features and functionality whenever necessary. Enjoy intuitive setup and management, making it simple to tailor your access system to your preferences.

The 2N Access Unit 2.0 RFID 13.56 Mhz saves on cabling and maintenance. Its all in one functionality combines a reader and a controller into a single device - It simply needs connecting to an IP Network. The lock, exit button and door contact can be connected to the 2N Access Unit 2.0 directly. It also supports NFC, Offering users access with their Mobile Phone (with the My2N App) instead of an RFID Card.

Ideal for Residential Projects

Don't settle for ordinary access control systems. The sleek and modern 2N Access Unit 2.0 is designed to not only provide reliable security but also enhance the aesthetic appeal of your space. Black and Nickel Frames are available to order separately, for Surface Mounting or for In the Wall Mounting.

No Controller Needed

Say goodbye to the hassle of controllers and tangled cables. The 2N Access Unit 2.0 is designed to be completely self sufficient, offering a streamlined and hassle free access control experience.

Installation Options

As a standalone Access Unit, the Access Unit 2.0 requires a Frame Mount to be Flush Mounted or Surface Mounted.

The flush mounted Access Unit 2.0 protrudes around 5mm and looks elegant, of course if you do prefer you can install it on a surface, if you dont want to drill a hole you can stick the 2N Access Unit 2.0 onto a glass surface.

Surface Frame Mounts and Flush Frame Mounts are available separately in Nickel Finish and Black Finish:

• Nickel Surface Frame Mount
• Black Surface Frame Mount
• Nickel Flush Frame Mount
• Black Flush Frame Mount
• Flush Installation Requires the Flush Installation Mounting Box

Quick Installation

The intuitive design makes installation a breeze. Simply plug in the UTP cable and connect the Access Unit to your lock, and you're ready to go all in around 4 minutes!

Timeless Solution

Easily add or remove components as your needs change, ensuring your system remains flexible and efficient. Expand your system to accommodate growth or changing requirements without the need for a complete overhaul.

IP54 Rating / IK08 Impact Rating

The 2N Access Unit 2.0 is built to withstand daily use and with an IP54 protection rating ensures that the Unit is protected from dust and water splashes, making it suitable for both indoor and outdoor installations.

IK08 Impact Protection Rating enables the 2N Access Unit 2.0 to withstand 5 Joules of impact energy, ideal for areas where there is a risk of impact.

Reads Secure RFID Cards

Eliminate the threat of access card copying, 2N's MIFARE® DESFire® cards, encrypted with 2N® PICard technology, offer the ultimate in security. These cards are designed to prevent unauthorised access, ensuring the safety of your people and property.

2N PICard technology provides an extra layer of protection, making your access control system virtually impenetrable.

The Following RFID Cards (13.56 MHz) are Supported)

• ISO14443A (MIFARE® DESFire®), PicoPass (HID iClass)
• FeliCa, ST SR(IX), NFC (2N® Mobile Key)
• HID SE (Seos, iClass, MIFARE
• Reads Secured MIFARE® DESFire® EV2/EV3 Cards using 2N® PICard Technology
• Reads PACs ID (HID iClass Cards with SIO Object) - Secured Version Only

Features

• Secured RFID Access - 13.56 MHz
• NFC Support
• Elegant, Robust Design
• IP54 And IK08 Ratings
• Compatible with 2N PICard Technology
• Surface Mounts and In the Wall Mounts Available to Purchase (Not Included)
• Multi-Frequency RFID Card Reader
• LAN (PoE) or Optional 12V Power Supply (Not Included)
• Supports Android 6.0 and Higher, iOS 12.0 and Higher

Technical Specifications:

Power Supply

• PoE and / or 12V / 1 A DC
• PoE - 802.3af (Class 0–12.95 W)

Interfaces

• LAN - 10/100BASE-TX with Auto-MDIX, RJ-45 Jack
• Recommended Cabling - Cat5e or Higher
• Active Switch Output -  8 to 12 V DC/ Max 600 mA
• Passive Switch - NO/NC Contacts, up to 30 V/1 A AC/DC
• Inputs - 2 inputs - In Passive / Active Mode (-30 V to +30 V DC), OFF = open or Uin> 1.5 V, ON ON = short-circuit or Uin< 1.5 V
• Tamper Switch - Native Part of the 2N Access Unit 2.0
• Audio - Buzzer (97dBA)
• Supported Protocols - DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog

Supported Frequencies

• 13.56 MHz

Weight and Dimensions

• Weight - 0.8kg Maximum
• Dimensions With Surface Mounting Frame - 107mm x 130mm x 28mm (W x H x D)
• Dimensions With Flush Mounting Frame - 130mm x 153mm x 5mm (W x H x D)
• Flush Mounting Box (Minimum Hole) - 108mm x 131mm x 45mm (W x H x D)

Expansion Modules

• 2N Access Unit 2.0 Supports Modules from the 2N® IP Verso intercom - RFID Card Readers, Keypad, Fingerprint, Bluetooth, I/O Module, Wiegand, etc - Modules are not Included

Package Contents

• 2N Access Unit 2.0
• Certificate of Ownership
• Quick Start Manual
• Hex Key
