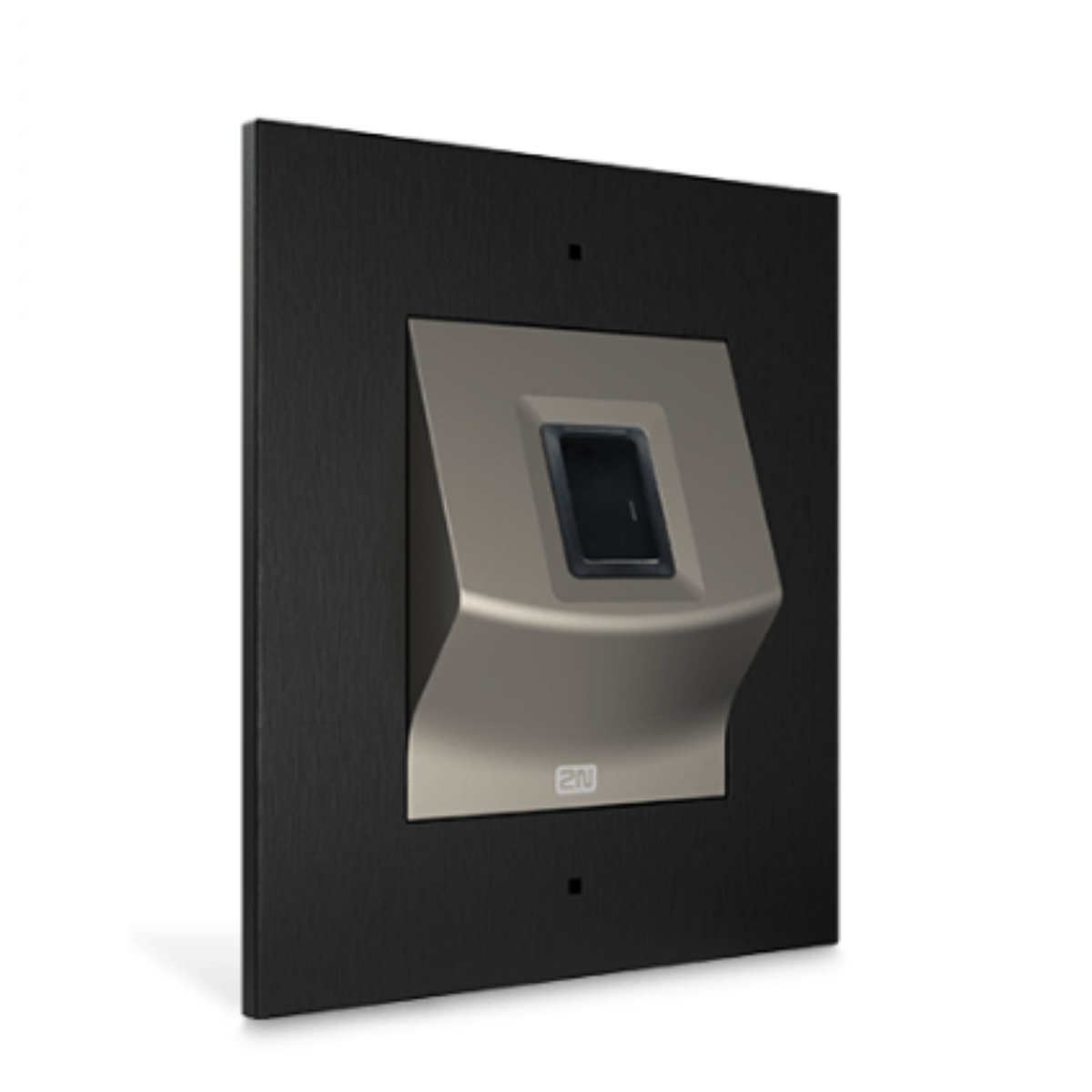

2N Access Unit 2.0 Fingerprint Reader

A 2N IP Access Unit with Biometric Fingerprint Reader

About the 2N® Access Unit 2.0 Fingerprint Reader

The 2N Access Unit 2.0 Fingerprint Reader is an all in one Biometric Access Control Device, featuring a high precision Optical Touch Sensor, protected by toughend glass, that provides maximum security, reliability, and rapid fingerprint recognition.

The Optical Sensor ensures accurate and fast access control, its ideal for both indoor and outdoor environments, IP network connectivity ensures seamless integration with your existing security infrastructure.

False fingerprint detection ensures that only users with registered fingerprints can gain access.

Powered by PoE or by optional 12V Power Supply. The robust materials, construction and IP54 rating protect the Fingerprint Reader from dust, water and corrosion.

Eliminate the need for keys or cards. Protect your premises with a robust fingerprint based system. Ideal for homes, schools, offices, and other locations.

Installation Options

As a standalone Access Unit, the Fingerprint Reader requires a Frame Mount to be Flush Mounted or Surface Mounted.

Surface Frame Mounts and Flush Frame Mounts are available separately in Nickel Finish and Black Finish:

• Nickel Surface Frame Mount
• Black Surface Frame Mount
• Nickel Flush Frame Mount
• Black Flush Frame Mount
• Flush Installation Requires the Flush Installation Mounting Box

Timeless Solution

Easily add or remove components as your needs change, ensuring your system remains flexible and efficient. Expand your system to accommodate growth or changing requirements without the need for a complete overhaul.

No Controller Needed

Say goodbye to the hassle of controllers and tangled cables. The 2N Access Unit 2.0 is designed to be completely self sufficient, offering a streamlined and hassle free access control experience.

IP54 Rating / IK08 Impact Rating

The 2N Access Unit 2.0 is built to withstand daily use and with an IP54 protection rating ensures that the Unit is protected from dust and water splashes, making it suitable for both indoor and outdoor installations.

IK08 Impact Protection Rating enables the 2N Access Unit 2.0 to withstand 5 Joules of impact energy, ideal for areas where there is a risk of impact.

Features

• All in One Biometric Access Control Device
• Reliable Optical Technology - Optical Touch Sensor Protected by Toughend Glass
• False Fingerprint Detection
• Innovative Functional Design
• Weather Resistant Sensor
• IP Connected Device, Easy Installation
• Ambient Light Suppression for use in Direct Sunlight
• Suitable for Indoor and Outdoor Installations
• IP54 and IK08 Protection Ratings
• Robust Materials and Construction

Technical Specifications:

Power Supply

• PoE and / or 12V / 1 A DC
• PoE - 802.3af (Class 0–12.95 W)

Interfaces

• LAN - 10/100BASE-TX with Auto-MDIX, RJ-45 Modular Jack
• Recommended Cabling - Cat5e or Higher
• Active Switch Output -  8 to 12 V DC/ Max 600 mA
• Passive Switch - NO/NC Contacts, up to 30 V/1 A AC/DC
• Inputs - 2 inputs - In Passive / Active Mode (-30 V to +30 V DC), OFF = Open or Uin> 1.5 V, ON ON = Short Circuit or Uin< 1.5 V
• Tamper Switch - Native Part of the 2N Access Unit 2.0
• Audio - Buzzer (97dBA)
• Supported Protocols - DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog

Fingerprint Reader

• Sensor - Optical Sensor Protected by Resistant Glass
• Reliability - Algorithm for Fake Fingerprint Detection
• Resistance - Water and Dust Resistant
• Signalling - Acoustic and Multicoloured LED's
• Sensing Area - Large with Dimensions of 15.24mm x 20.32mm
• Certification - Certified According to FBI Standard
• Ambient Light Suppression - Works in Direct Sunlight

Weight and Dimensions

• Weight - 0.8kg Maximum
• Dimensions With Surface Mounting Frame - 107mm x 130mm x 28mm (W x H x D)
• Dimensions With Flush Mounting Frame - 130mm x 153mm x 5mm (W x H x D)
• Flush Mounting Box (Minimum Hole) - 108mm x 131mm x 45mm (W x H x D)

Package Contents

• 2N Access Unit 2.0
• Certificate of Ownership
• Quick Start Manual
• Hex Key
